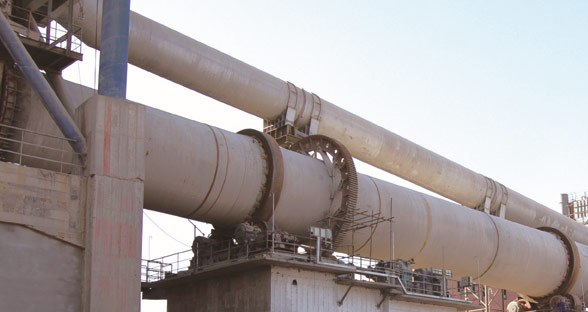

Rotary kiln is the rotary calcined kiln (commonly known as rotary kiln), belonging to the class of building materials equipment. The cylinder of the rotary kiln is formed by steel plate rolling, and the cylinder body is provided with a refractory lining, and is provided with a prescribed inclination by the horizontal, and is supported by the three wheel supports on each gear supporting device, and the cross- The inner cylinder is fixed with a tangential spring plate to a large ring gear, under which a pinion is engaged. In normal operation, the main drive motor through the main reducer to the open gear transmission power, drive rotary kiln.
|
规格 （米） |
|
|
Φ2.8/2.5 * 44 |
Φ3 * 48 |
Φ3.2 * 50 |
Φ3.3 * 50 |
Φ3.5 * 54 |
Φ4 * 60 |
|
生产能力 （吨/天） |
|
|
300 |
600-700 |
1000 |
1200 |
1500-1800 |
2500 |
|
窑体斜度 （%） |
|
|
3.5 |
3.5 |
3.5 |
4 |
4 |
4 |
|
支承数 （个） |
|
|
3 |
3 |
3 |
3 |
3 |
3 |
|
挡轮形式 |
|
|
机械 |
机械或液压 |
液压 |
液压 |
液压 |
液压 |
|
窑体转速 |
主传动 (转/分） |
0.445-2.22 |
0.676-3.38 |
0.36-3.57 |
0.36-3.57 |
0.39-3.9 |
0.41-4.07 |
|
|
|
辅助传动（转/小时） |
4.75 |
9.36 |
6.5 |
5.61 |
7.66 |
8.2 |
|
|
主传动 |
电动机 |
型号 |
ZSN4-225-21 |
Z2-101 |
ZSN4-280-091B |
ZSN4-280-091B |
ZSN4-315-092 |
ZSN4-355-092 |
|
|
额定功率（千瓦) |
55 |
100 |
160 |
160 |
220 |
315 |
|
|
|
调速范围（转/分） |
~1000 |
~1500 |
1500 |
1500 |
1000 |
1000 |
|
|
|
额定电压（伏） |
440 |
220 |
440 |
440 |
440 |
440 |
|
|
|
减速器 |
型号 |
ZS145-1-1 |
ZS145-1-1 |
ZSY-450-40-V |
ZSY450-40 |
NZS995-28VIBL |
YNS1110-22.4VBR |
|
|
|
总速比 |
49-63 |
50 |
40 |
40 |
28 |
22.4 |
|
辅助传动 |
电动机 |
型号 |
Y122M-4 |
Y160M-6 |
Y160M-4B |
Y160M-4 |
Y200L1-6 |
Y180L-4 |
|
|
额定功率（千瓦) |
4 |
7.5 |
15 |
11 |
18.5 |
22 |
|
|
|
调速范围（转/分） |
1440 |
970 |
1460 |
1460 |
970 |
1470 |
|
|
|
额定电压（伏） |
380 |
380 |
380 |
380 |
380 |
380 |
|
|
|
减速 |
型号 |
ZL35-16 |
ZL35-7-I |
ZSY160-31.5-II |
ZSY355-31.5 |
ZSY355 |
YNS440-45 II R |
|
|
|
总速比 |
40.44 |
14 |
31.5 |
31.5 |
45 |
45 |
|
总重（不包括耐火砖）（吨） |
|
|
177 |
207 |
256.5 |
281 |
341 |
434 |
|
|
|
|
|
|
|
|
|
|
|
规格 （米） |
|
|
Φ4.3 * 64 |
Φ4.8 * 74 |
Φ5.0 * 74 |
Φ5.6 * 87 |
Φ6.0 * 95 |
|
|
生产能力 （吨/天） |
|
|
3500 |
5000 |
6000 |
8000 |
10000 |
|
|
窑体斜度 （%） |
|
|
4 |
4 |
4 |
4 |
4 |
|
|
支承数 （个） |
|
|
3 |
3 |
3 |
3 |
3 |
|
|
挡轮形式 |
|
|
液压 |
液压 |
液压 |
液压 |
液压 |
|
|
窑体转速 |
主传动 (转/分） |
0.4-4.0 |
0.35-4 |
0.35-4 |
Max 4.23 |
Max 5 |
|
|
|
|
辅助传动（转/小时） |
7.93 |
8.52 |
7.58 |
8.7 |
9.2 |
|
|
|
主传动 |
电动机 |
型号 |
ZSN4-355-12 |
ZSN4-400-092 |
ZSN4-450-092 |
ZSN4-450-12 |
ZNS4-500-092 |
|
|
|
额定功率（千瓦) |
400 |
630 |
710 |
800 |
950 * 2 |
|
|
|
|
调速范围（转/分） |
100~1000 |
1500 |
87.5~1000 |
100~1000 |
100~1000 |
|
|
|
|
额定电压（伏） |
440 |
660 |
660 |
660 |
660 |
|
|
|
|
减速器 |
型号 |
YNS1400-31.5VIBL |
JH710C-SW305-40 |
JH800C-28 |
JH900C-SW305-25 |
JS900C-SW305-28 |
|
|
|
|
总速比 |
31.5 |
42.226 |
26.812 |
23.901 |
26.646 |
|
|
辅助传动 |
电动机 |
型号 |
Y200L-4 |
Y250M-4 |
Y250M-4 |
Y280M-4 |
Y315M1-4 |
|
|
|
额定功率（千瓦) |
30 |
55 |
55 |
90 |
132 |
|
|
|
|
调速范围（转/分） |
1470 |
1480 |
1480 |
1480 |
1490 |
|
|
|
|
额定电压（伏） |
380 |
380 |
380 |
380 |
380 |
|
|
|
|
减速 |
型号 |
YNS497-45ZC |
JH220C-SW302-28 |
JS280C-45 |
ZSY400-35.5-I |
ZSY450-35.5-I |
|
|
|
|
总速比 |
45 |
28 |
45 |
35.795 |
35.795 |
|
|
总重（不包括耐火砖）（吨） |
|
|
550.5 |
854 |
894 |
1201 |
1580 |
|
